Product Introduction

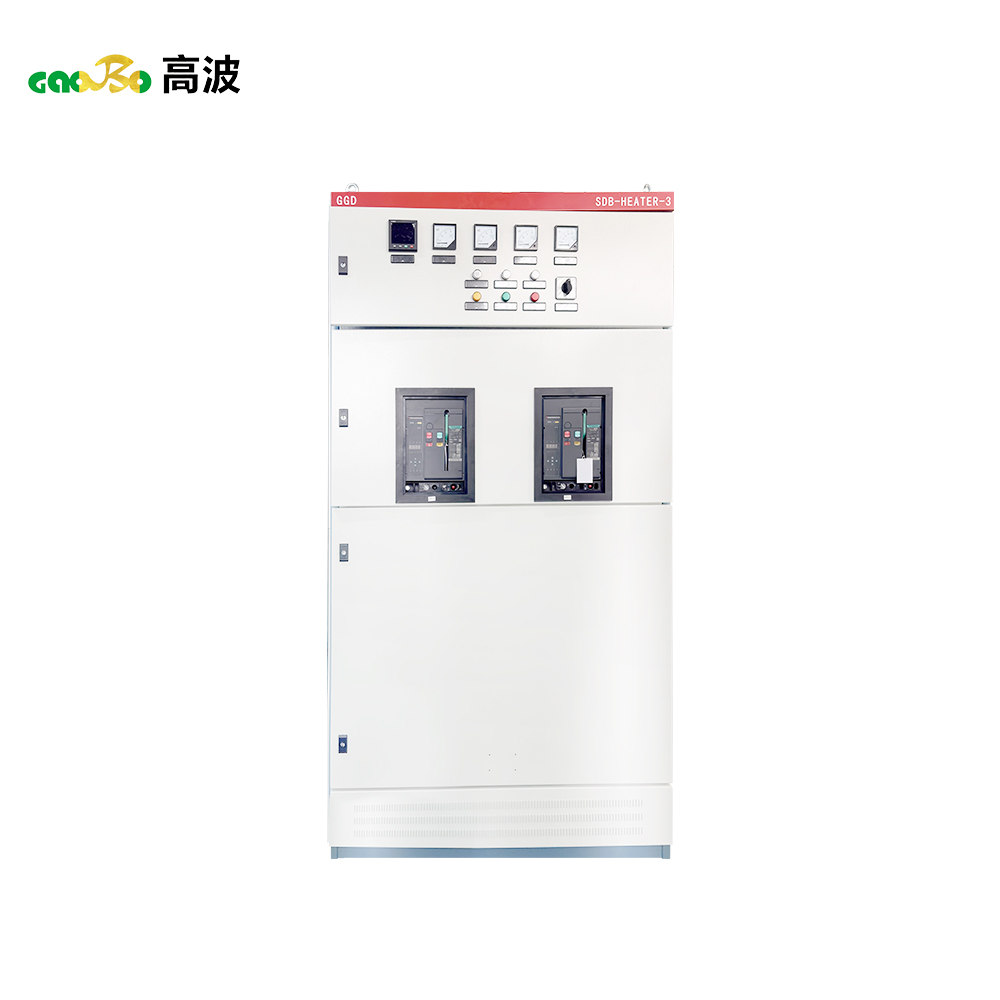

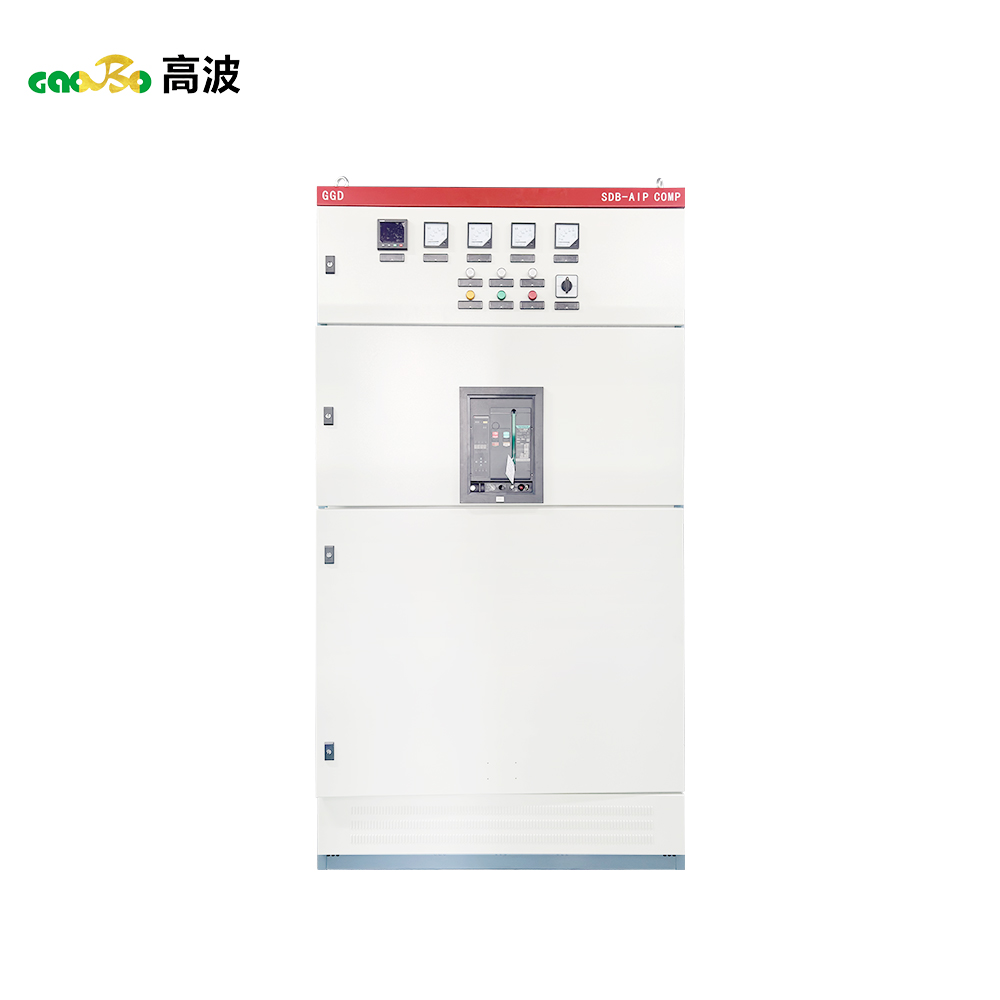

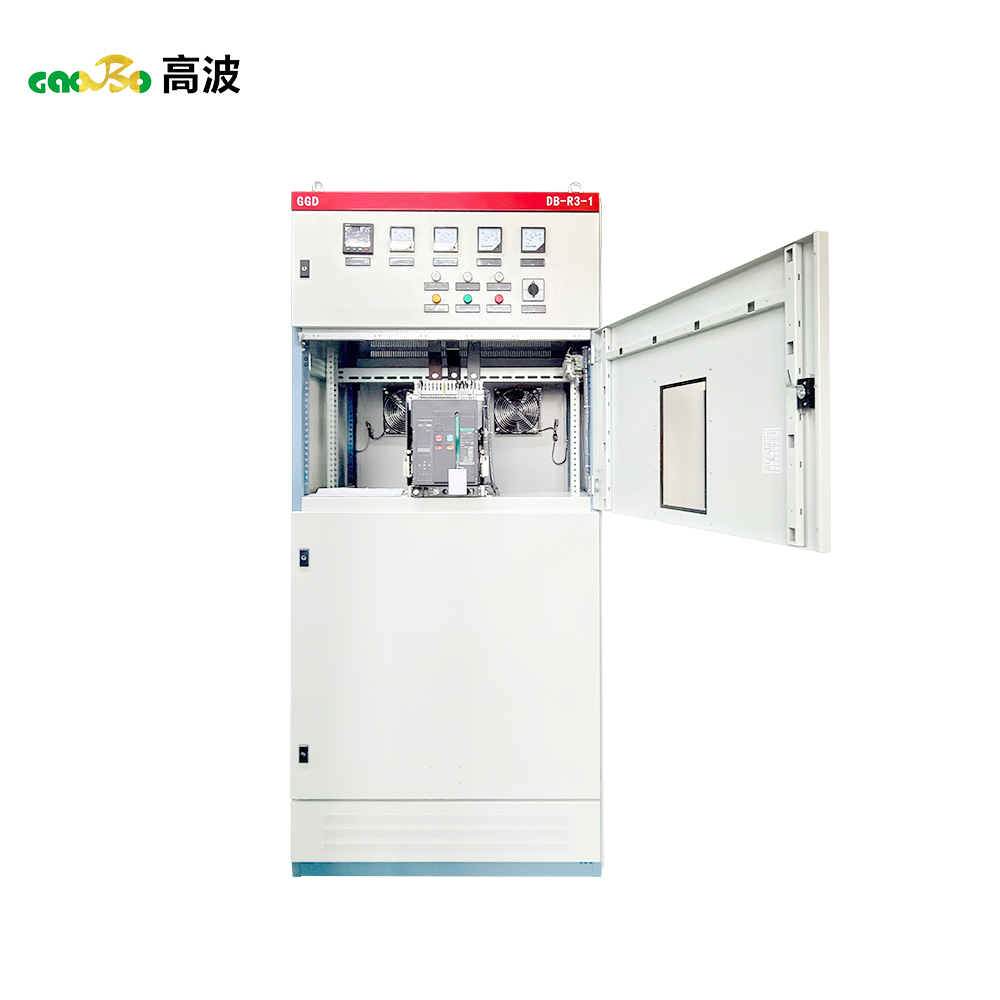

The GGD Low Voltage Fixed-Type Switchgear Cabinet is designed for low-voltage power distribution systems where stable operation, straightforward maintenance and cost-effective equipment configuration are required.
Unlike withdrawable switchgear such as GCK or MNS, the main electrical components in a GGD cabinet are installed in a fixed arrangement. This structure provides good mechanical stability and is suitable for incoming feeders, outgoing feeders, transformer distribution systems and general industrial power distribution applications.
GAOBO SWITCHGEAR MANUFACTURER can manufacture GGD cabinets according to customer single-line diagrams and technical specifications. The cabinet can integrate circuit breakers, meters, protection relays, current transformers, indication devices, busbars and auxiliary control components.
Depending on the project, customers can also specify preferred electrical component brands and protection requirements.
Main Applications
GAOBO GGD low voltage switchgear can be used in:
- Power plants and substations
- Manufacturing factories
- Industrial production lines
- Commercial buildings
- Shopping centers
- Office buildings
- Hospitals
- Hotels
- Data centers
- Mining facilities
- Water treatment plants
- Transportation infrastructure
- Renewable energy projects
- Transformer secondary distribution systems
It is particularly suitable for projects requiring a reliable and economical fixed-type low voltage distribution cabinet.
Main Functions
Power Distribution
Circuit Protection
Power Monitoring
Incoming and Outgoing Feeder Control
Electrical Isolation
System Protection and Control
Main Features
1. Reliable Fixed-Type Structure
The fixed installation of major electrical components provides a stable mechanical structure and is suitable for long-term operation in industrial and commercial power distribution systems.
2. Simple Design and Easy Maintenance
GGD switchgear has a relatively straightforward internal arrangement, making inspection, maintenance and component replacement convenient.
3. Flexible Electrical Configuration
The cabinet can be customized according to the customer’s single-line diagram, rated current, feeder quantity, protection requirements and preferred component brands.
4. Strong Busbar Configuration
Copper busbars can be designed according to project current requirements and short-circuit capacity.
5. Clear Front Panel Operation
Meters, indicator lights, switches and operating mechanisms are arranged on the front of the cabinet for convenient operation and system monitoring.
6. Cost-Effective Power Distribution
Compared with more complex withdrawable systems, GGD fixed-type switchgear offers a practical solution for projects that require dependable low-voltage distribution with controlled investment costs.
7. Customized Manufacturing
GAOBO can customize cabinet dimensions, internal layout, enclosure color, electrical components, busbars, metering devices and protection systems according to project specifications.
Why Choose GAOBO GGD Switchgear?
GAOBO SWITCHGEAR MANUFACTURER provides factory-direct design and manufacturing services for low-voltage switchgear projects.
Customers can submit electrical drawings, single-line diagrams or basic technical parameters, and the GAOBO engineering team can support cabinet configuration, component selection and production planning.
From cabinet manufacturing and electrical assembly to wiring, inspection and factory testing, GAOBO focuses on providing reliable and cost-effective electrical distribution solutions for international projects.
Frequently Asked Questions
1. What Is a GGD Low Voltage Switchgear Cabinet?
A GGD switchgear cabinet is a fixed-type low-voltage electrical distribution cabinet used for receiving and distributing electrical power. It can contain circuit breakers, busbars, meters, current transformers, protection devices and control components. It is commonly used in factories, commercial buildings, substations and infrastructure projects.
2. What Is the Difference Between GGD and GCK Switchgear?
The main difference is the internal structure. GGD is generally a fixed-type switchgear cabinet, while GCK uses a withdrawable drawer-type structure. GGD is simpler and cost-effective, while GCK provides greater modularity and easier replacement of individual functional units.
3. Can GAOBO Customize GGD Switchgear According to My Project?
Yes. GAOBO can customize GGD cabinets according to your single-line diagram, rated voltage, rated current, feeder quantity, circuit breaker brand, busbar specifications, metering requirements, protection functions and cabinet dimensions.
4. What Information Is Needed for a GGD Switchgear Quotation?
For an accurate quotation, it is recommended to provide the single-line diagram, system voltage, frequency, rated current, incoming and outgoing circuit quantities, short-circuit requirements, preferred component brands and cabinet protection requirements. If complete drawings are not available, GAOBO can review the available electrical parameters and assist with configuration.
5. Where Can GGD Low Voltage Switchgear Be Used?
GGD switchgear is widely used in industrial plants, commercial buildings, power distribution rooms, substations, hospitals, hotels, water treatment facilities, mining projects, infrastructure systems and transformer secondary distribution applications.
